12 3/8" x 16 3/8" Universal Access cover

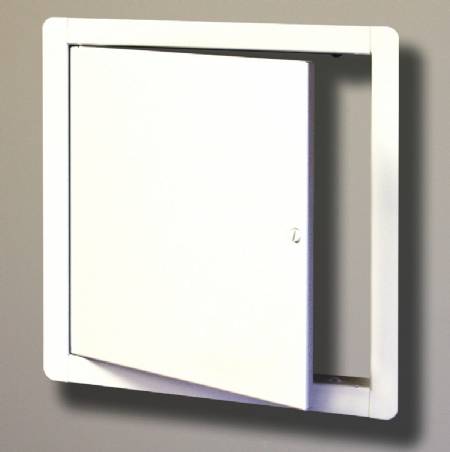

UA1216 - Universal Access Door

Door size 12" x 16"

Overall Dimensions 14 1/8" x 14 1/8"

Wall Opening 12 3/8" x 16 3/8"

• Material - UA Series is 16 gage satincoat steel door and 16 gage satincoat steel frame. The UASS stainless steel Series is 16 gauge #304 stainless steel door and frame. Aluminum doors are available as an option up to the 24" x 24" (610 x 610) size. The door and frame is 16 ga., type 5052-32 aluminum.

• Finish - Satincoat steel doors have a primed white finish. Stainless steel doors have a #4 brush satin finish.

• Door - Flush to frame. Turned back around edges for extra rigidity.

• Frame - The frame has pre-punched mounting holes for simple installation.

• Hinge - Concealed pivot pins.

• Latch - Standard - Flush mounted, screwdriver operated cam. Optional - Allen key, cylinder key, paddle latch, or vandal resistant latch. All of MIFAB's cylinder key locks are keyed alike.
