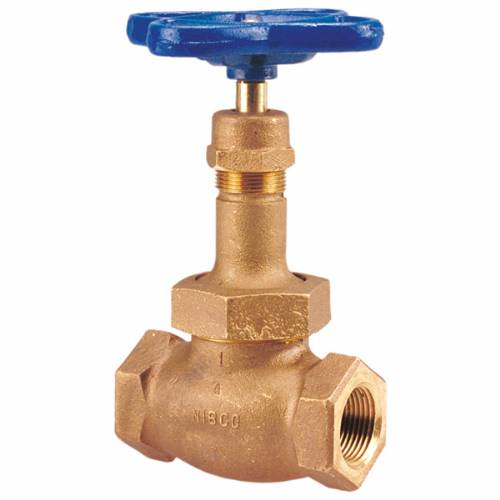

T-256-AP Glove Valve-Class 200,Bronze Full Plug Disc

Material Description - T256AP  200#, UB, Renewable 500 Brinnell, SS Full Plug Disc & Seat

The NIBCO® bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. The globe valve is used for throttling or regulating flow.

The NIBCO® bronze globe valve features a union bonnet with replaceable seat and renewable full plug disc. It is equipped with female threads ends for ease of installation. This valve is ideal for higher pressure steam and the full plug disc allows for closer throttling of flow. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® globe valves are backed by the NIBCO 5-year 125% limited warranty.

200 psi/13.8 bar saturated steam to 391°F/201°C
400 psi/27.6 bar non-shock cold working pressure
Replaceable seat
Union bonnet
Renewable stainless steel full plug disc
Class 200 threaded end connections
Dezincification resistant
Conforms to MSS SP-80
Size range ¼" to 3"
