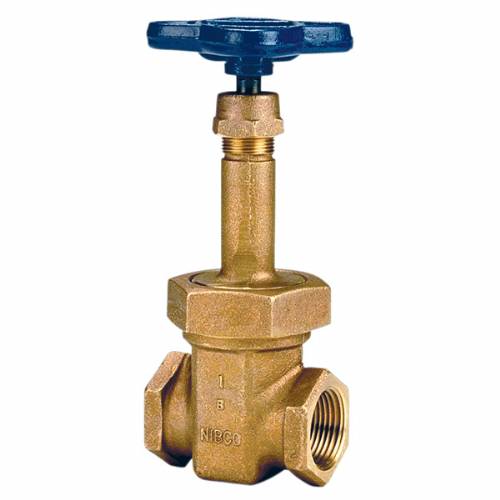

T-124 Gate Valve Bronze, Rising Stem, Threaded

Material Description - T124  125# UB, RS, Solid Wedge

The NIBCO® bronze gate valve features a union bonnet for service where reparability in-line is required. The female threaded ends allow for ease of installation. Rising stem gate valves are used when positive shutoff is required and a space saving is necessary. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.

The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO 5-year 125% limited warranty.



• 125 psi/8.6 bar saturated steam to 353°F/178°C
• 200 psi/13.8 bar non-shock cold working pressure
• Rising stem
• Solid wedge
• Union bonnet
• Class 125 threaded end connections
• Dezincification resistant
• Conforms to MSS SP-80
• Size range ¼” to 3”
