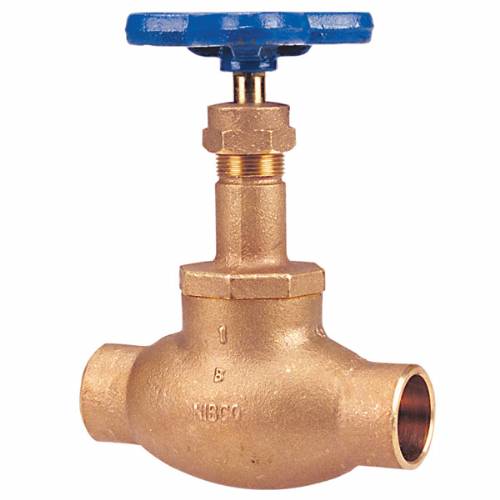

S-211-Y Globe Valve, Class 125, Bronze, PTFE Disc, Solder Ends

Material Description - S211Y  125# ,SB, Integral Seat, PTFE

The NIBCO® bronze globe valve features a screw in bonnet with integral seat. The valve has a renewable PTFE seat disc. It is equipped with Class 125 solder ends for ease of installation. The globe valve is used for throttling or regulating flow.

The NIBCO® bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® globe valves are backed by the NIBCO 5-year 125% limited warranty.

125 psi/8.6 bar saturated steam to 366°F/178°C
200 psi/13.8 bar non-shock cold working pressure
Integral seat
Screw-in bonnet
Renewable PTFE seat disc
Class 125 solder end connections
Dezincification resistant
Conforms to MSS SP-80
Size range 1/8" to 3"
