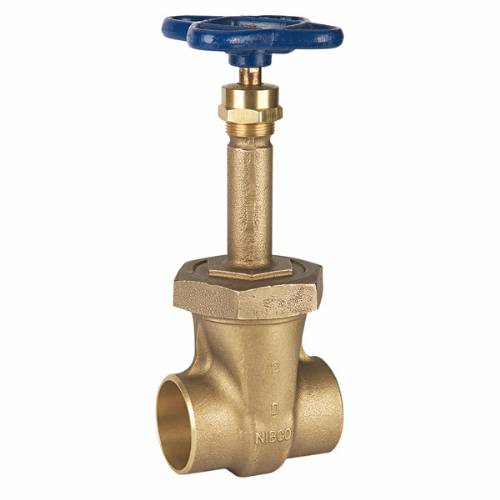

S-134-U Gate Valve Bronze, Class 150,Rising Stem, Union Bonnet, Solder Ends

Material Description - T134 150#, UB,RS, Solid Wedge

Union Bonnet

The NIBCO® bronze gate valve features a union bonnet for service where reparability in-line is required. The solder ends allow for ease of installation. Rising stem gate valves are used when positive shutoff is required and a quick visual indicator of open/closed position is required. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.

The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO 5-year 125% limited warranty.

150 psi/10.3 bar saturated steam to 366°F/185°C
300 psi/20.7 bar non-shock cold working pressure
Rising stem
Solid wedge
Union bonnet
Class 150 solder end connections
Dezincification resistant
Conforms to MSS SP-80
Size range ¼” to 3”
