F-918-13 Class 125, Gate Valve, 3% Nickel Iron Body, Stainless Steel Trim

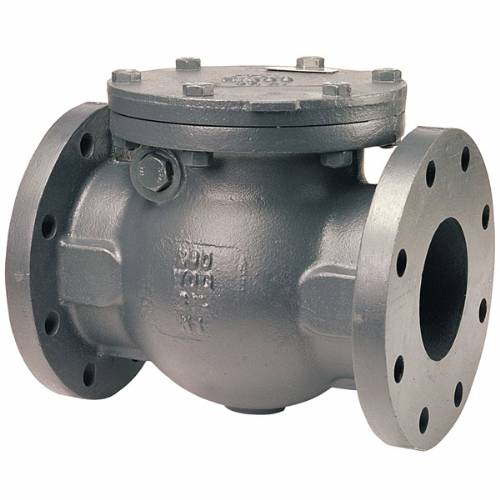

3% Nickel Iron Body, Stainless Steel Trim The NIBCO� horizontal swing check valve has a 3% nickel iron body, and is designed with stainless steel renewable seat and disc. The Class 125 check valve features flanged end connections for easy installation. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The alloy iron check valve is specifically designed for use in the pulp and paper process piping industry. The NIBCO� check valve is equipped with a bolted bonnet for maintenance accessibility. Swing checks may be installed in horizontal positions (or vertical with flow moving up). The 3% nickel iron and the stainless steel trim provide excellent corrosion resistance for the tough applications of the pulp and paper industry. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO� check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO� check valves are backed by the NIBCO 5-year 125% limited warranty. 125 psi/8.6 bar saturated steam to 353�F/178�C 200 psi/13.8 bar non-shock cold working pressure Bolted bonnet Renewable seat and disc Stainless steel trim Class 125 flanged end connections Conforms to MSS SP-71 Size range 2" to 12"
