F-910-W Iron Body, Class 125, Wafer Disc Check Valve, Bronze Disc, Bronze Seat

Class 125, Flanged, Buna-N Seat

Material Description - F910W  FLG SILENT CK CI
 Valve Type 28/IRON SILENT CHECK
 NIBCO Bronze and Iron Valves

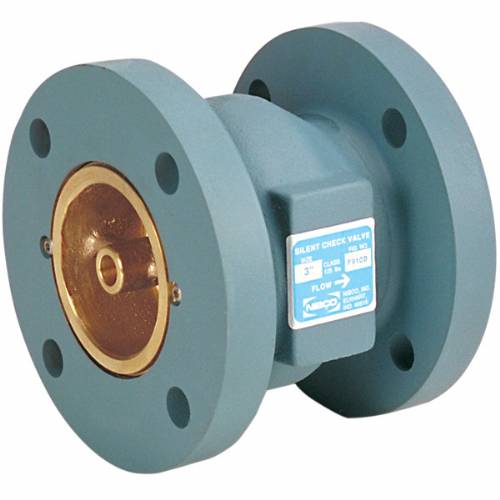

The NIBCO® cast iron silent check valve is spring actuated with renewable Buna-N seat and bronze sliding disc. The spring return reduces noise for quiet operation. The wafer style check valve features a flanged wafer body style to fit between standard flanges. The check valve is recommended for commercial and industrial water applications.

Check valves prevent backflow by automatically closing when fluid reverses direction. Wafer checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO 5-year 125% limited warranty.

200 psi/13.8 bar non-shock cold working pressure
Max temperature 180°F/82°C
Renewable seat and disc
Spring actuated (1/2 psi cracking pressure)
Class 125 flanged end connections
Conforms to MSS SP-125
Conforms to MIL-V-18436F
Size range 2½” to 36”
