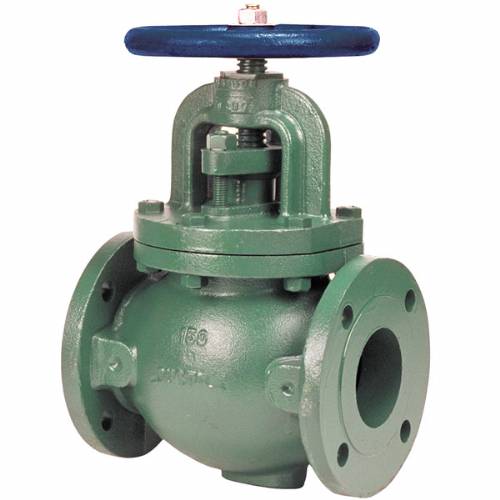

F-738-31 Globe Valve, Ductile Iron, Class 150, Bronze Trim

Material Description - F73831 FLG GLOBE D I
 Valve Type 27/DUCTILE IRON/ALLOY
 NIBCO Bronze and Iron Valves

The NIBCO® Class 150 ductile iron globe valve is recommended for service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Globe valves are recommended for throttling or regulating flow.

The ductile iron outside screw and yoke (OS&Y) globe valve features Class 150 raised face end connections for easy installation and accessibility. This valve features renewable seat and disc. The bolted bonnet makes the valve convenient to maintain. Because of its seat and disc arrangement the valve is ideal for throttling or regulating flow. With its ductility, this valve displays higher physical properties than standard grey cast iron. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® globe valves are backed by the NIBCO 5-year 125% limited warranty

150 psi/10.3 bar saturated steam to 366°F/185°C
250 psi/17.2 bar non-shock cold working pressure
Ductile Iron Class 150 raised face flanged
Outside screw and yoke
Bolted bonnet
Renewable seat and disc
Class 150 raised face flanged end connections
Conforms to MSS SP-85
Size range 2” to 10
