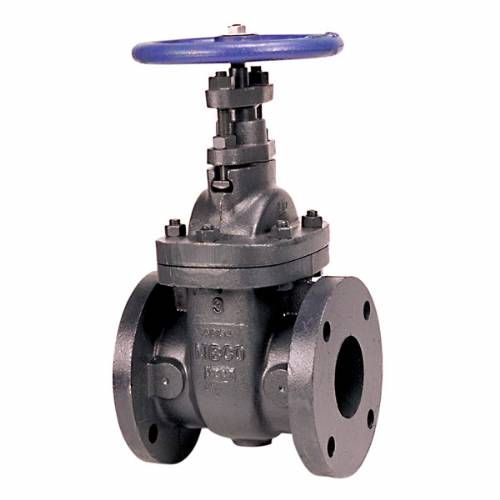

F-619-N Gate Valve, Class 125, Cast Iron, All Iron Trim, Flanged

Class 125, Cast Iron, All Iron Trim, Flanged

The NIBCO® cast iron gate valve with all iron trim provides full flow with minimal pressure drop. The gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem.

The NIBCO® flanged cast Iron Gate valve may be used in commercial and industrial applications which convey oil or gas fluids that are corrosive to bronze trim but allowable for iron or steel. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO 5-year 125% limited warranty.

125 psi/8.6 bar saturated steam to 353°F/178°C
200 psi/13.8 bar non-shock cold working pressure
Non-rising stem
Bolted bonnet
Solid wedge
Class 125 flanged end connections
Conforms to MSS SP-70
Size range 2” to 12”
