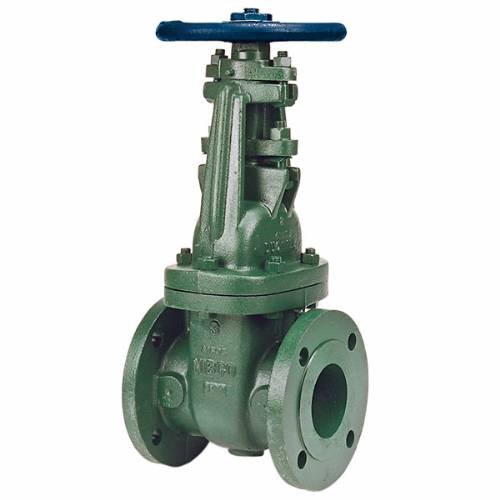

F-617-13-XL Gate Valve, Class 125, Nickel Iron, Stainless Steel Trim, Flanged, Large Diameter

The NIBCO alloy iron large diameter gate valve provides full flow with minimal pressure drop. The gate valve features Class 125 flanged, flat face end connections for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media. The valves 3% nickel iron body and stainless steel trim provide excellent corrosion resistance for the tough applications of the pulp and paper industry The NIBCO flanged alloy iron gate valve may be used in industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty. 100 psi/6.9 bar fluid pressure to 450 F/232C 150 psi/10.3 bar non-shock cold working pressure Outside screw and yoke Bolted bonnet Solid wedge Stainless steel trim Class 125 flanged end connections Conforms to MSS SP-70 Size range 14 to 24
