MJ-619-RW-SON Iron, Wedge, RW Irrigation MJ Gate Valve

Material Description -
Valve Type 2E/IRR IRON
NIBCO Bronze and Iron Valves

Iron, Irrigation, Resilient Wedge, Gate Valve
Ductile Iron, Irrigation, Mechanical Joint, Square Operating Nut

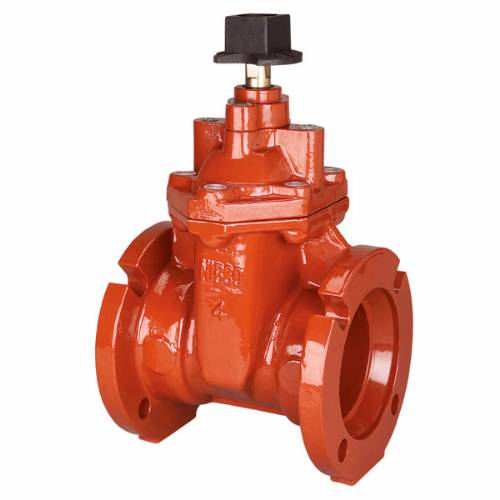

The NIBCO® resilient wedge ductile iron gate valve provides full flow with minimal pressure drop and positive shutoff. The NIBCO® mechanical joint, cast iron gate valve may be used with confidence in water works and irrigation services.
The NIBCO® resilient wedge ductile iron gate valve features mechanical joint end connection for easy installation and accessibility. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium. These valves may be operated with a hand-wheel or square operating nut and wrench (wrench not included). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for one of the most versatile and economical valve option in irrigation, commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO 5-year 125% limited warranty.

250 psi/17.2 bar non-shock cold working pressure
Maximum operating temperature of 160ºF/71ºC
Non-rising stem
Bolted bonnet
Resilient wedge
Fusion bonded epoxy coated body (NSF and FDA certified)
Mechanical joint end connections
Conforms to AWWA C509
Size range 3" to 16"
