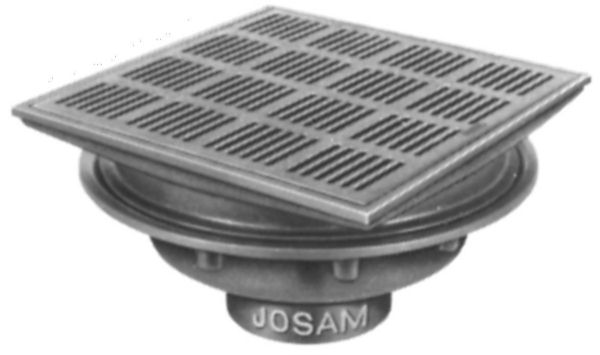

Josam 23500 14'' Promenade Top Large Sump

Specification
23500 Series coated cast iron Roof Drain, square pedestrian grate set in square secured frame, WEJLOC non-puncturing flashing collar with weepholes for 2" roof fill, large sump with wide roof flange and bottom outlet.

Application
Used on promenade decks and roofs where foot traffic or light to medium weight vehicles may be present. Large square grate provides ample free area for proper drainage with narrow slotted openings for pedestrian safety and to intercept debris. Wejloc compression clamp ring secures the membrane or flashing to the drain body.
