NB-F960B - F-960-B Iron Body, Class 250, Check Valve, Bronze Disc, Bronze Seat...
Home
»
»
»
Manufacturer Nibco
Product ID NB-F960B

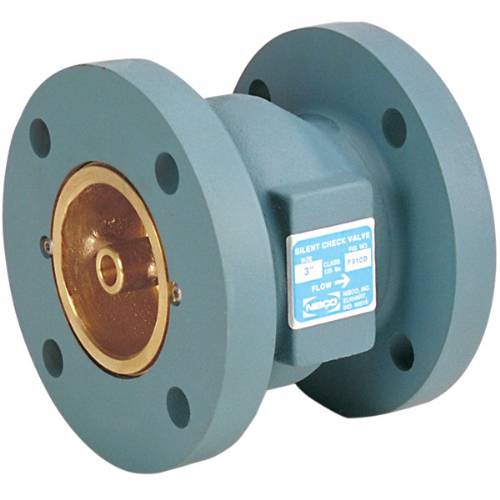

F-960-B Iron Body, Class 250, Check Valve, Bronze Disc, Bronze Seat

Material Description - F960B FLG SILENT CK CAST IRON
 Valve Type 28/IRON SILENT CHECK
 NIBCO Bronze and Iron Valves


Check Valve –Class 250, Flanged, Bronze Seat

The NIBCO® cast iron silent check valve is spring actuated with renewable cast bronze seat and sliding bronze disc. The spring return reduces noise for quiet operation. The wafer style check valve features a flanged wafer body style to fit between standard flanges. The check valve is recommended for commercial and industrial water applications.

Check valves prevent backflow by automatically closing when fluid reverses direction. Wafer checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO 5-year 125% limited warranty.


400 psi/27.6 bar non-shock cold working pressure
Max temperature 200°F/ 93°C
Renewable seat and disc
Spring actuated (1/2 psi cracking pressure)
Class 250 flanged end connections
Conforms to MSS SP-125
Conforms to MIL-V-18436F
Size range 2½” to 36”
