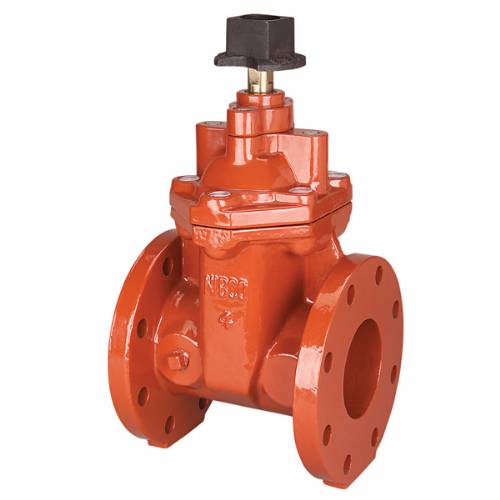

F-619-RW-SON Iron, Wedge, RW Gate Valve, Square Operating Nut

Ductile Iron, Resilient Wedge, Square Operating Nut

Material Description - F619RWSON W/SQ OPER NUT
 Valve Type 2E/IRR IRON
NIBCO Bronze and Iron Valves

The NIBCO® resilient wedge ductile iron gate valve provides full flow with minimal pressure drop and positive shutoff. The flanged, iron gate valve may be used with confidence in water works and irrigation services.

The NIBCO® resilient wedge ductile iron gate valve features flanged, flat face end connections for easy installation and accessibility. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium. These valves may be operated with a hand-wheel or square operating nut and wrench (wrench not included). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for one of the most versatile and economical valve option in irrigation, commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO 5-year 125% limited warranty.

250 psi/17.2 bar non-shock cold working pressure
Maximum operating temperature of 160ºF/71ºC
Non-rising stem
Bolted bonnet
Resilient wedge
Fusion bonded epoxy coated body (NSF and FDA certified)
Flanged end connections
Conforms to AWWA C509
Size range 2" to 16"
