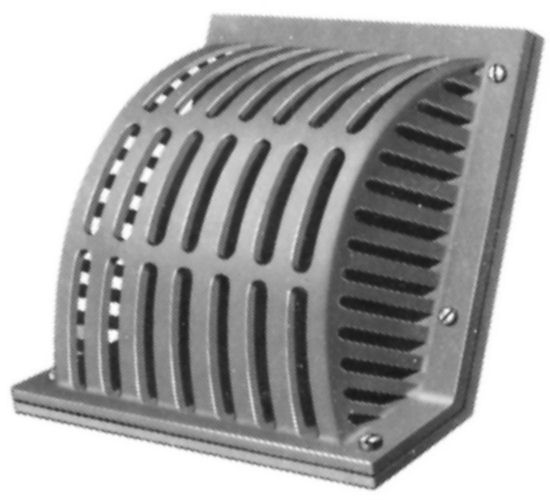

Josam 24900 Parapet Type Angle Dome Grate Roof Drain

Specification
24900 Series coated cast iron Roof Drain, parapet type, secured bronze dome integral with flashing clamp, flashing flange and side outlet threaded connection.

Application
Used at the junction of the roof and the parapet where perimeter or emergency drainage of rainwater is required and a 135� cant is specified. Extra-large sloping grate provides ample drainage and is slotted to prevent entrance of debris. Flashing and membrane are positively secured to the drain body with a compression clamp, with threaded side outlet.
